220V single phase
AC300-1P
300 kg.fAdvancing force- Power
- 180 / 200 W
- Output torque
- 168 N.m
- Max. lifting height
- 6 m
B2B ROLLING DOOR MOTOR SUPPLY
Rolling door motors for the specifications your buyers ask for.
Compare the YERQI range across 220V single-phase, 380V three-phase and DC series. Use the table as a starting point, then send your door requirement for model matching.
220V SINGLE-PHASE FOCUS
Compare 300, 500, 600, 800 and 1000 kg rolling door motors.
The parameter sheet records advancing force in kg.f. These five configurations have published values; a 400 kg requirement needs separate matching. PL1000 corresponds to the AC1000-1P configuration in our source sheet.
220V single phase
AC500-1P
500 kg.fAdvancing force- Power
- 250 / 300 W
- Output torque
- 345 N.m
- Max. lifting height
- 6 m
220V single phase
AC600-1P
600 kg.fAdvancing force- Power
- 370 W
- Output torque
- 412 N.m
- Max. lifting height
- 6 m
220V single phase
AC800-1P
800 kg.fAdvancing force- Power
- 400 W
- Output torque
- 850 N.m
- Max. lifting height
- 9 m
220V single phase
PL1000
1000 kg.fAdvancing force- Power
- 550 W
- Output torque
- 875 N.m
- Max. lifting height
- 9 m
MODEL COMPARISON
Rolling door motor specification table.
All data below is based on the current YERQI product parameter sheet. Confirm the final door configuration and local electrical requirements before order preparation.
| Model | Series | Advancing force | Power | Output torque | Speed | Max. lifting height | Chain | Roller Ø |
|---|---|---|---|---|---|---|---|---|
| AC300-1P | 220V single phase | 300 kg.f | 180 / 200 W | 168 N.m | 6 r/min | 6 m | 10A | 4 in |
| AC500-1P | 220V single phase | 500 kg.f | 250 / 300 W | 345 N.m | 6 r/min | 6 m | 10A | 4 in |
| AC600-1P | 220V single phase | 600 kg.f | 370 W | 412 N.m | 6 r/min | 6 m | 10A | 5 in |
| AC800-1P | 220V single phase | 800 kg.f | 400 W | 850 N.m | 5 r/min | 9 m | 10A | 6 in |
| PL1000 | 220V single phase | 1000 kg.f | 550 W | 875 N.m | 5 r/min | 9 m | 12A | 6 in |
| AC600-3P | 380V three phase | 600 kg.f | 370 W | 412 N.m | 6.5 r/min | 6 m | 10A | 5 in |
| AC800-3P | 380V three phase | 800 kg.f | 550 W | 850 N.m | 5 r/min | 9 m | 10A | 6 in |
| AC1000-3P | 380V three phase | 1000 kg.f | 550 W | 875 N.m | 5.5 r/min | 9 m | 12A | 6 in |
| AC1300-3P | 380V three phase | 1300 kg.f | 600 W | 1400 N.m | 6 r/min | 10 m | 12A | 8 in |
| AC1600-3P | 380V three phase | 1500 kg.f | 800 W | 1617 N.m | 5 r/min | 10 m | 16A | 8 in |
| AC2000-3P | 380V three phase | 2000 kg.f | 850 W | 2450 N.m | 4 r/min | 12 m | 16A | 8 in |
| DC-300 | DC series | 300 kg.f | 200 W | 168 N.m | 5.5 r/min | 6 m | 10A | 4 in |
| DC-500 | DC series | 500 kg.f | 220 W | 343 N.m | 6 r/min | 6 m | 10A | 4 in |
| DC-800 | DC series | 800 kg.f | 240 W | 600 N.m | 5.5 r/min | 9 m | 10A | 5 in |
WHAT TO SEND WITH YOUR INQUIRY
A better requirement creates a better model recommendation.
- Door detailsDoor type, opening dimensions and required lifting height.
- Local powerConfirm whether your market needs 220V, 380V or a DC solution.
- Project quantityShare your planned quantity and private-label requirement.
SELECTION ANSWERS · REVIEWED 6 SEPTEMBER 2026
Before you select a rolling door motor.
For shopfront shutters, warehouse openings and garages using a rolling-door mechanism, start with the door and installation details below. A sectional garage door, sliding gate or swing gate needs its own operator assessment.
What do 300, 500, 600, 800 and 1000 kg rolling door motor ratings mean?
These are common purchasing labels. Our parameter sheet states advancing force in kg.f, not a universal approved door mass. Compare torque, roller diameter, lifting height and the actual door mechanism before selecting a motor.
Can I request a 400 kg rolling door motor?
Yes. Send a 400 kg requirement for model matching. A separate 400 kg specification is not listed in our current sheet, so we confirm the configuration before quoting; we do not substitute guessed power or torque values.
Are all Chinese rolling door motors with the same kg rating interchangeable?
No automatic interchangeability is promised. Our listed values describe the supplied configurations. Check voltage, phase, frequency, mounting, chain, roller and controller before replacing another motor, even when the kg label is the same.
Which power supply should I specify?
The AC sheet lists 220V single-phase and 380V three-phase configurations. Frequency, permissible voltage variation and alternative electrical versions must be confirmed for the order. Do not select the supply only by country name.
Can these motors be used outdoors or for intensive operation?
Provide the installation exposure, ambient temperature, daily cycles and busiest operating period. The current parameter sheet does not specify IP rating, operating temperature or duty cycle. We confirm these requirements before recommending a configuration; the figures are not approval for continuous use.
What is included with the motor?

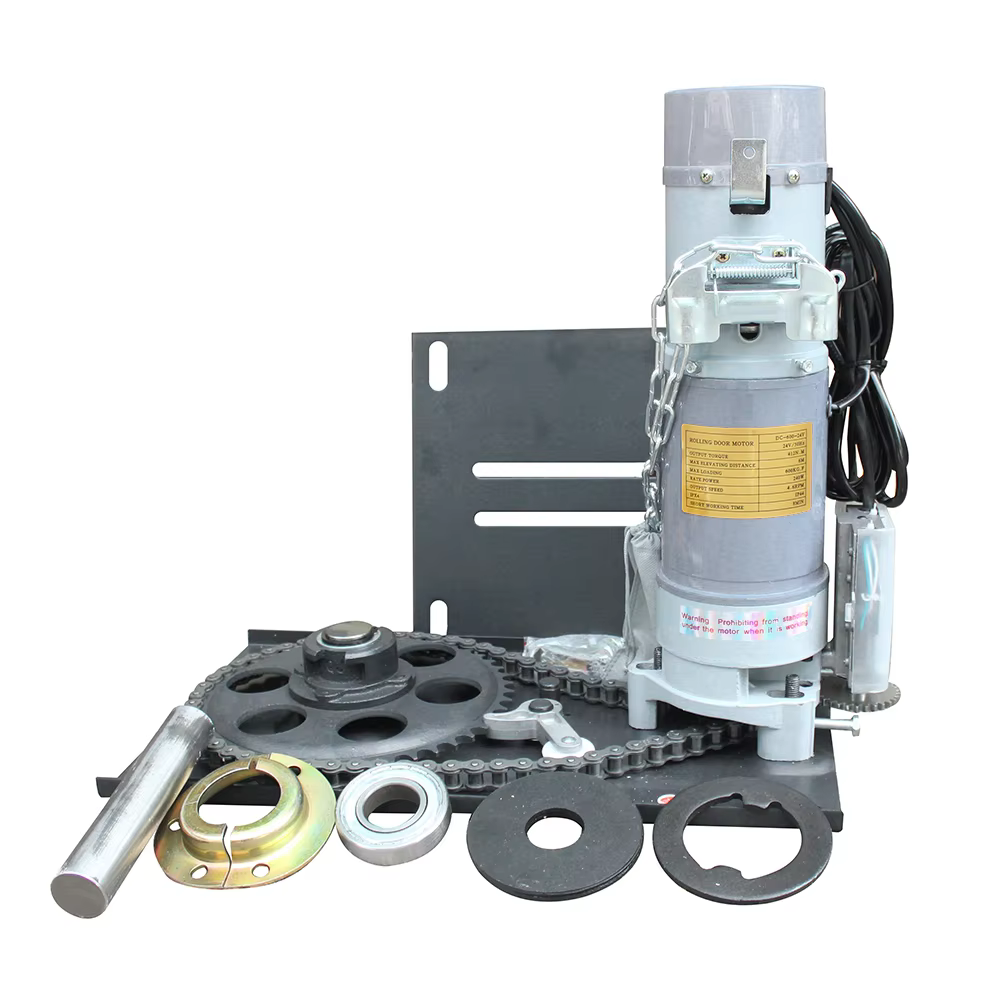

Confirm a written packing list before ordering. Control handles are also sold separately. The exact controller, remotes, chain-drive components, brackets and other accessories depend on the agreed kit; a product photo is not a packing list.
Control-handle compatibility checklist → · OEM ordering questions →
Technical values: owner-supplied AC/DC parameter sheets. Installation suitability, safety devices and local requirements must be checked by a qualified installer. This is a procurement guide, not an installation manual.ROLLING DOOR MOTOR FAQ
Questions from distributors and installers.
Which rolling door motor voltage series are available?+
The YERQI range includes 220V single-phase, 380V three-phase and DC rolling door motor series.
How should I select a model?+
Share the door type, required advancing force, lifting height, roller size, local voltage and quantity. YERQI can then help match a suitable model range.
Can I request a wholesale catalog?+
Yes. Use the inquiry form to request the catalog, discuss MOQ 200 units and private-label requirements.
REQUEST MODEL MATCHING
Tell us the door requirement and target market.
MOQ: 200 units · Typical lead time: 15 days · Private label available · 1-year warranty.
